Greening the grid and what it takes

Seminar Nasional Politeknik APP Jakarta 2023

Krisna Gupta

November 23, 2023


access this slide:


  • The recent development

  • Model setting

  • Results & discussions

  • conclusions


sumber: IESR
  • Indonesia recent NDCs vow to reduce emissions by 31.9% (CM1) and 43.2% (CM2)1 in 2030, net-zero emission (NZE) in 2050.

  • From those, energy emission must reduced by 12.5% and 15.5% respectively.

  • Financing will be a challenge, as it requires 3,500 Trilion IDR

Electric power!

  • Electrification is central to the Indonesian effort toward the climate goals:

  • Grid is very coal dominated, but that’s cuz it’s cheap(Burke et al. 2019).

  • Transitioning will be costly, but electricity price will also go up.

  • May impact the already low energy consumptions.

Transportation still dominates for now

electricity generation grows fast

Per-capita basis? Still very low

Electricity growth is fueled by coal

The targets

According to Resosudarmo, Rezki, and Effendi (2023), MEMR (2020b), MEMR (2020a) and MoEF (2021) Lolla and Yang (2021):

  • 52% total PLN’s electricity by renewables in 2030.

  • In 2040, no more coal: full renewable electricity.

  • In 2030, 64% electricity will be generated by Independent Power Producers (IPP)

  • Lots and lots of EV and induction stoves.

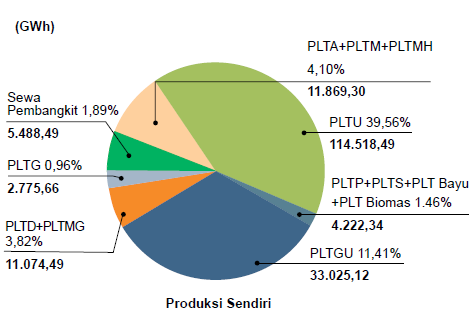

Electricity produced by source (GWh) source: PLN (2021)
  • Indonesian electricity sector is heavily regulated and PLN is the sole distributor.

  • Prices are layered with household (44.78% of total consumers) typically pays the least, followed, industries (31.4%), business (17.25%), and then the government (6.57%) (PLN 2021).

  • Renewable is still very small, dominated by Hydro (11TWh), Geothermal (4TWh), and very little solar (5GWh).

  • PLN can’t increase price & must cut subsidy. Thus, rely on coal.


  • Independen Power Producers (IPPs) will play a bigger role:

  • Growth of renewable mainly comes from IPP solar and HH rooftop: of total 225MW solar capacity, only 9% is PLN-owned.

  • PLN cannot freely switch prices: it cannot increase price to consumers who buys electricity from expensive producers.

  • Uncertainty on land use and procurement are problems.

The Carbon market

  • The Indonesian government leads the effort with the creation of Emission Trading System (ETS).

  • The government will set a carbon cap to polluters. If a firm needs to pollute more than the cap, they must purchase permit from firms which pollute less or got taxed.

  • In a perfectly functioning market, this is efficient. Govt can also reduce cap each year little by little.

  • The price at the moment is hovering around 60-70k IDR/kgCO2 (around 4USD). Compare with foreigners? Still too cheap.


  • What if NDCs are met?

  • How much emission can we reduce, how much electricity is going to cost under different scenarios.

  • Should we retire coal? Or should we keep using coal but retire everything else and speed up renewables?

  • I use linear system by first assume a perfect substitution between 3 sources of energy: renewables, coal, and other fossil fuels.

Model setting

  • Let \(p \cdot w\) be a total cost of generating electricity (in Watt hour) from 3 sources: clean \((w_a)\), coal \((w_b)\), and less carbon-y fossil fuels \((w_g)\)

  • We add emission constraint to this standard cost minimization problem with \(a,b,g=\) emission factor of its respective energy source

  • We then get a completely linear system:

\[ \begin{aligned} \min_{W} \ & p \cdot w \\ \mbox{subject to } \ & w_a+ w_b+ w_g \ge \omega \\ & aw_a+bw_b+gw_g \le \varepsilon \\ & w_a,w_b,w_g \ge 0\\ \end{aligned} \]

Model setting

  • Cost optimization allows for a compensating variation calculatin (Cowell 2006).

  • Perfect substitution have important implications:

    • Perfect changes in electricity mix reflects a longer run scenario.

    • The cost of substitution isn’t reflected by the model.

    • Short-run constraint can be modeled by setting boundaries on the possible solution.


  • Electricity price from PLN (2021) where \(p_g \approx p_a \approx 2p_b\)

  • \(\omega\) from PLN (2021), but the share is from Lolla and Yang (2021).

  • Emission factor is calibrated from Febijanto (2010) and Steen (2001).

    • renewable has small factor from procuring solar PV.


case description model setting
1 status quo restricting the current share of generation.
2 current emission, optimized case 1 without source restriction.
3 carbon tax Same emission limit but with a carbon tax
4 CM1 same prices but a 12.5% emission reduction
5 CM2 same prices but a 15.5% emission reduction
6 New RUPTL case 2 with 52% renewables
7 Zero coal case 2 with 0% coal
8 Fully renewable case 2 with 100% renewables

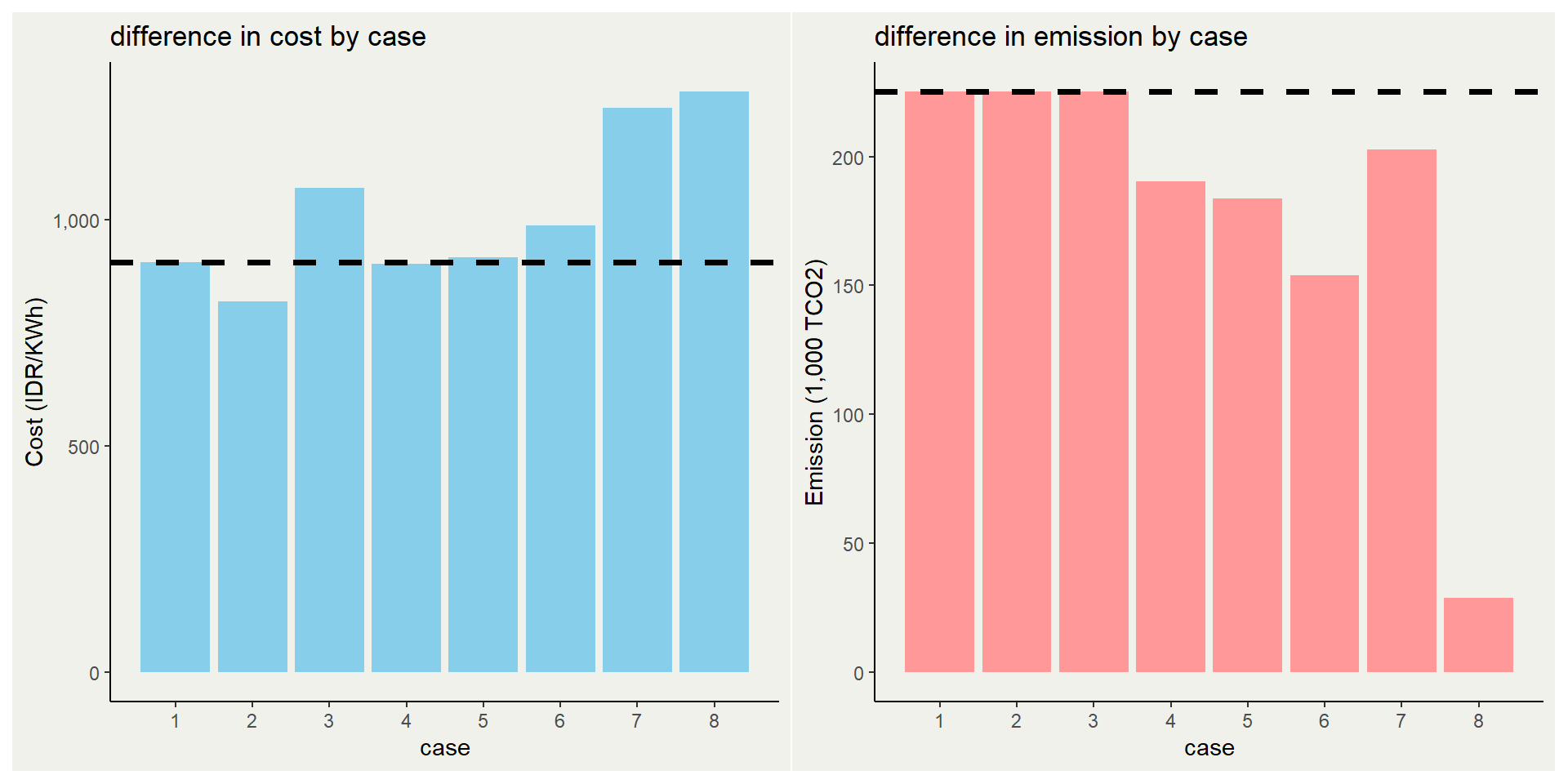

case cost (IDR/KWh) emission (TCO2) clean (%) coal (%) others (%)
1 906.11 225,208,103 17 60 23
2 819.96 225,208,103 24.67 75.33 0
3 1,071.53 225,208,103 24.67 75.33 0
4 902.63 190,277,276 38.07 61.93 0
5 918.07 183,753,484 40.58 59.42 0
6 988.49 153,998,343 52 48 0
7 1,247.93 202,629,399 0 0 100
8 1,284,44 28,947,057 100 0 0


  • Corner solution toward coal corroborate Indonesia’s reliance on coal.

  • Case 3: 50% increase in price -> 18.26% total cost, trivial emission reduction.

  • Carbon quota (CM1,CM2) increase cost less than carbon tax.

  • 0 coal \(\rightarrow\) 37.72% extra cost, 100% renewable \(\rightarrow\) 41.75%

  • Note this does not account for the transition cost.


  • Coal is central to cost reduction (and reliability). It may be hard to retire coal.

    • caveat: parameter-sensitive
  • Updated parameter is important: can the price of solar go lower in the future?

  • Since PLN is slow, enabling IPP will be key:

    • Barriers for them include uncertainty on procurement and the use of TKDN.
  • Floating PV may be a partial solution to lower renewable cost.

  • Carbon market is only as efficient as its institution. Can it endure the test of time?


  • It is shown that greening the grid is central to achieve Indonesia’s NDCs

  • Given vast majority of its users are HH and industry, rising cost can be a huge problem.

  • A linear substitution model shows electricity prices can potentially rise to more than 37%

  • Early-retiring coal may be too ambitious, and enabling IPPs to grow renewable is necessary.


Burke, Paul J., Jinnie Widnyana, Zeba Anjum, Emma Aisbett, Budy Resosudarmo, and Kenneth G. H. Baldwin. 2019. “Overcoming Barriers to Solar and Wind Energy Adoption in Two Asian Giants: India and Indonesia.” Energy Policy 132: 1216–28.
Cowell, Frank A. 2006. Microeconomics: Principles and Analysis. OUP Oxford.
Febijanto, Irhan. 2010. “Perhitungan Faktor Emisi Di Sistem Jaringan Ketenagalistrikan Jawa-Madura-Bali.” Jurnal Teknologi Lingkungan BPPT 11 (2): 227–37.
Lolla, Aditya, and Muyi Yang. 2021. “Indonesia: Indonesia Defies Global Trend with More Coal in the Generation-Mix.” ember-climate; Global Electricity Review 2021: G20 profile.
MEMR. 2020a. “Rencana Pengembangan Pembangkit Nasional Beri Porsi EBT Lebih Besar.” Ministry of Energy and Mineral Resources Press Release.
———. 2020b. “Turunkan Emisi 314 Juta Ton CO2 Tahun 2030,indonesia Perlu Investasi Rp 3.500 Triliun.” Ministry of Energy and Mineral Resources.,2030%20dengan%20estimasi%20kebutuhan%20investasi%20sebesar%20Rp3.500%20triliun.
MoEF. 2021. “Indonesia Third Biennial Update Report.” Ministry of Environment and Forestry.
PLN. 2021. “Statistik PLN.” 01001-220630. Perusahaan Listrik Negara.
Resosudarmo, Budy P., Jahen F. Rezki, and Yuventus Effendi. 2023. “Prospects of Energy Transition in Indonesia.” Bulletin of Indonesian Economic Studies 59 (2): 149–77.
Steen, M. 2001. “Greenhouse Gas Emissions from Fossil Fuel Fired Power Generation Systems.” JRC21207. JRC Publications Repository.

Comments and Questions are welcomed
